9091602211 EPDM Car Engine Timing Belt 5.7mm 30M/S Ribbed Belt

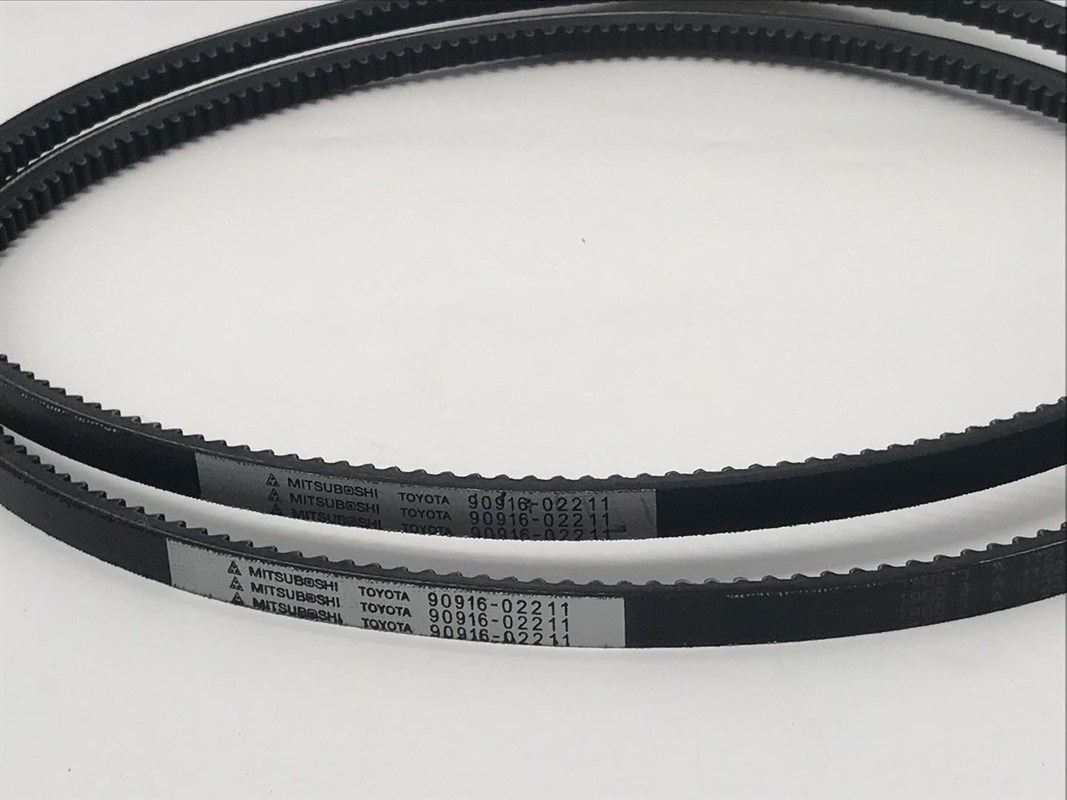

Large Image : 9091602211 EPDM Car Engine Timing Belt 5.7mm 30M/S Ribbed Belt

Product Details:

Place of Origin:	CHINA
Brand Name:	YN
Model Number:	90916-02211

Payment & Shipping Terms:

Minimum Order Quantity:	100
Price:	$1-$10
Packaging Details:	Standard packaging
Delivery Time:	10-15days
Payment Terms:	T/T, Western Union
Supply Ability:	100000 Piece/Pieces per Month

Contact Now

Detailed Product Description

Number:	90916-02211	Material:	Rubber, CR,EPDM
Type:	Ribbed Belt	Linear Speed:	30M/s
Surface:	Smooth / Rough	Belt Height:	5.7mm
High Light:	30M/S Car Engine Timing Belt , 9091602211 Timing Belt , EPDM Car Engine Ribbed Belt

9091602211 EPDM Car Engine Timing Belt 5.7mm 30M/S Ribbed Belt

Quick Details of Car Engine Timing Belt

Standard or Nonstandard:: Standard

Type:: Ribbed Belt

Material:: Rubber, CR,EPDM

Place of Origin:: Guangdong , China

Model Number:: 3PK,4PK,5PK,6PK,7PK,8PK,10PK, 12PK

Heat resistance:: -40°C-140°C

Linear speed:: 30M/s

PK Width:: 3.56mm

Size/OEM No.:: 3PK,4PK,5PK,6PK,7PK,8PK,10PK, 12PK

Surface:: smooth / rough

Teeth height:: 3.5mm

belt height:: 5.7mm

Payment:: Trade Assurence,TT,Western Union

No.	Name	Function	Material
1	Top Fabric	Protect the lining tensile member	Polyester Cotton Canvas
2	Buffer Rubber	Suport adn protect the adhesive force of the tensile member	CR, EPDM
3	Tensile Member	Critical material to pass the dynamic force	Polyester, Nylon
4	Bottom Rubber	Maintain the shape of the rubber and improve its side compression performance	CR, EPDM

Feature of Car Engine Timing Belt

Wide breadth but thin belt, excellent elastic and flexural property
High transmission efficeincy under the operating environment of high-speed rotation, reverse flexure, small band pulley, etc.
Core rubber with high tension and low elongation, while the consistent tension is maintained during the process of operation
Excellent heat-resistance, oil-proof, and wearing resistance
Less slip while large transmission effect during the process of operation
Less noise during the process of operation

Size or Section of Car Engine Timing Belt

Type	Ribsection(mm)	Angle of rib(o)	Belt Thickness(mm)	Rib Numbers	Length range
PH	1.6	40	3	3-54	540-1270
PJ	2.34	40	4	3-36	540-18880
PK	3.56	40	4-6	3-23	600-2400
PL	4.7	40	10	3-16	900-3000
PM	9.4	40	17	3-8	1500-3000
